Products Description

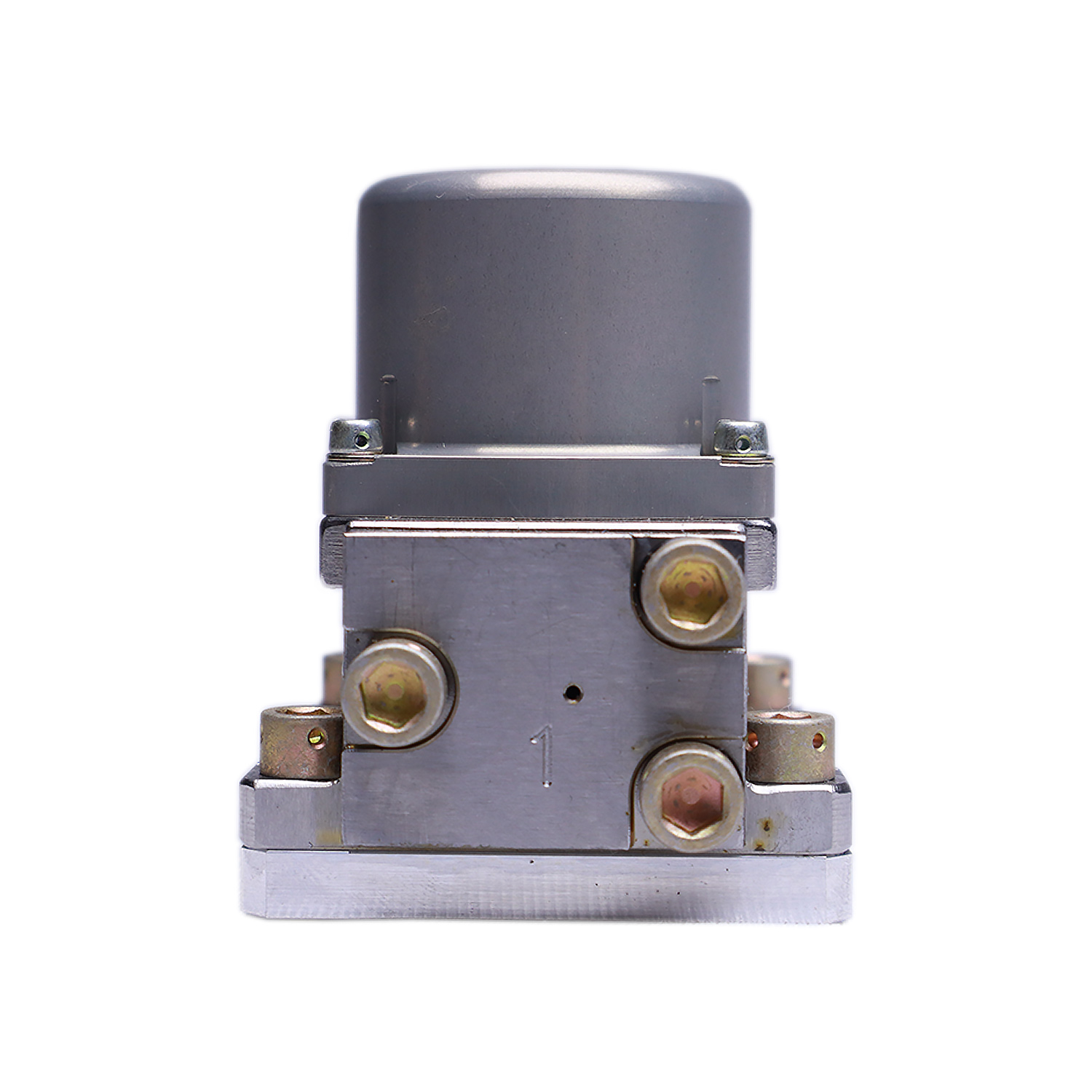

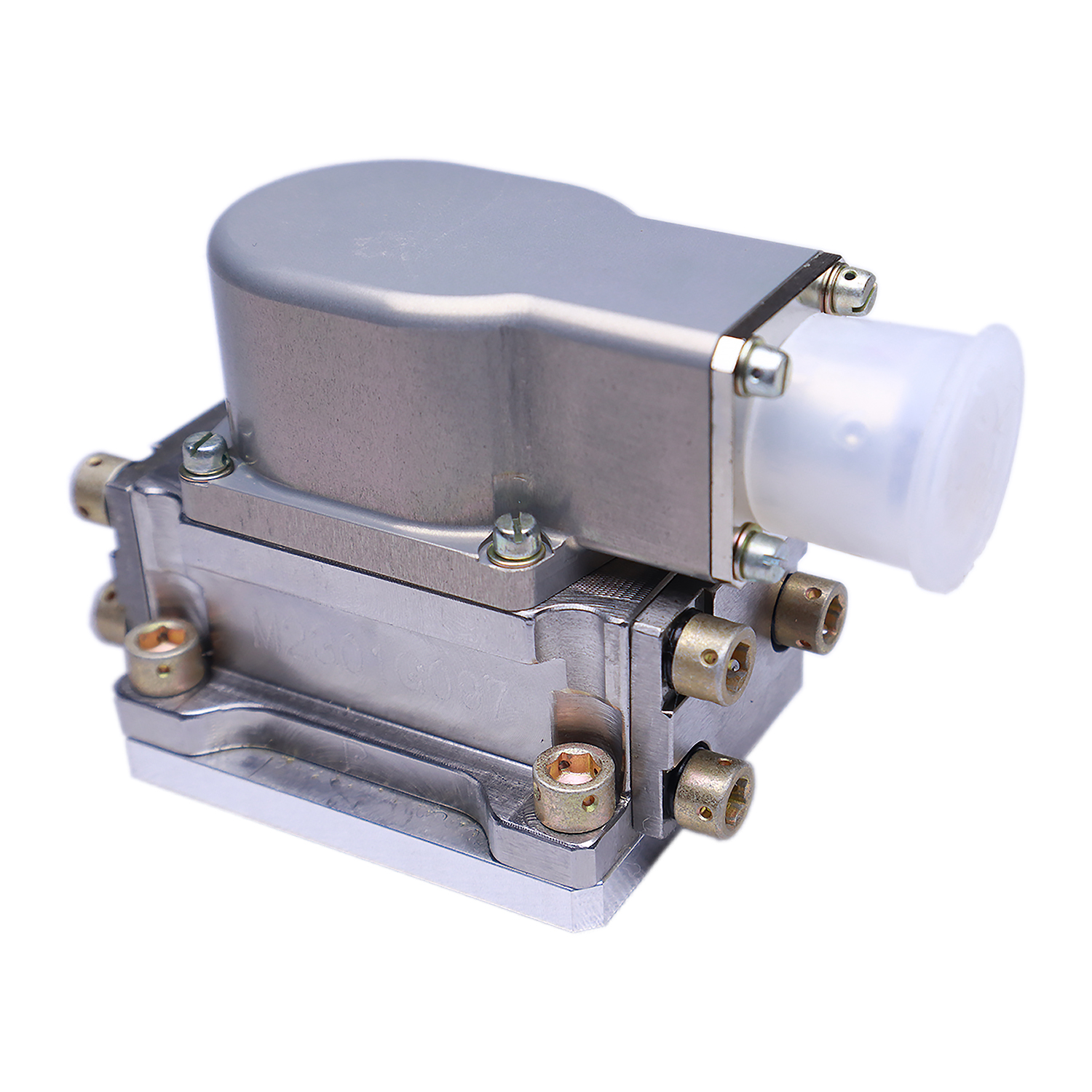

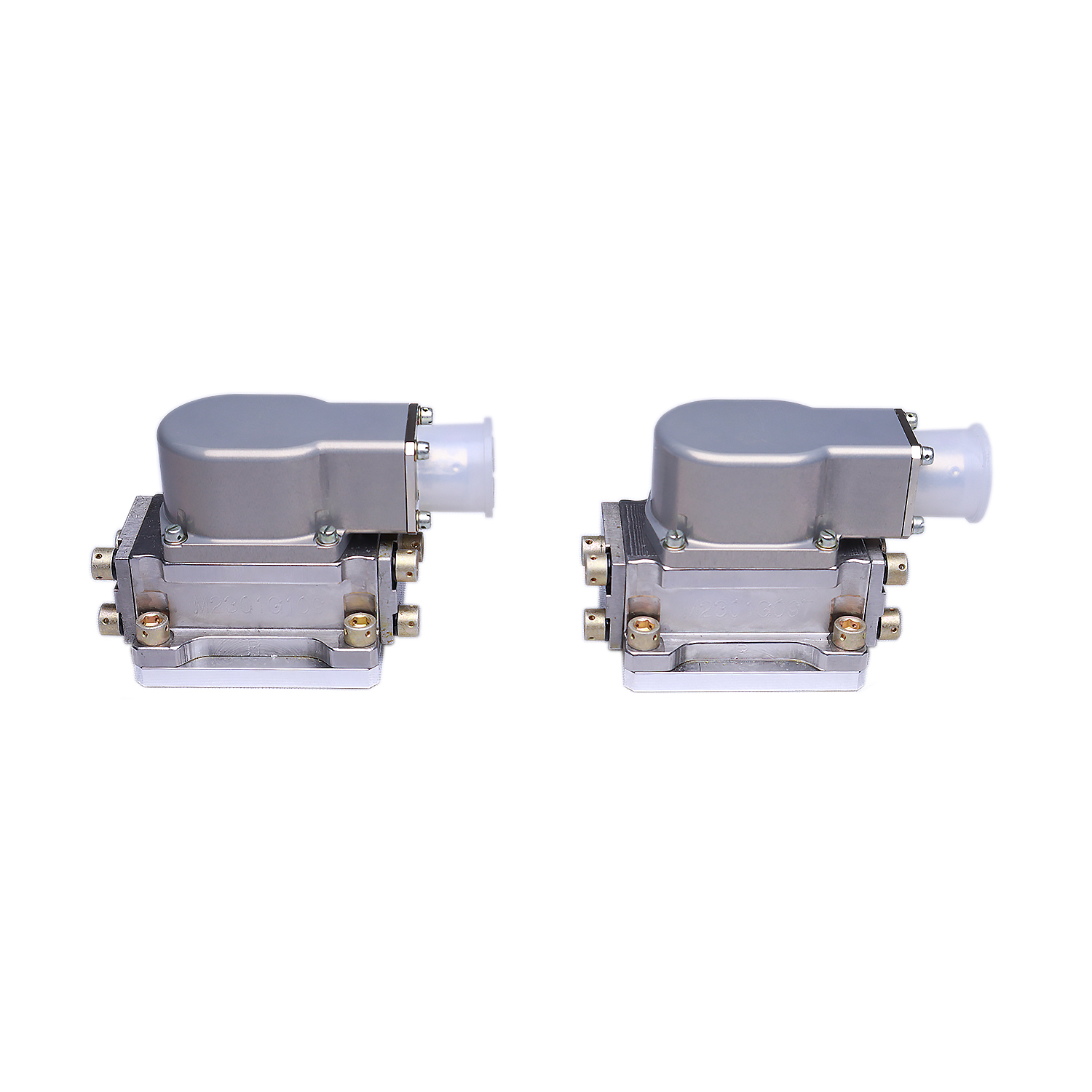

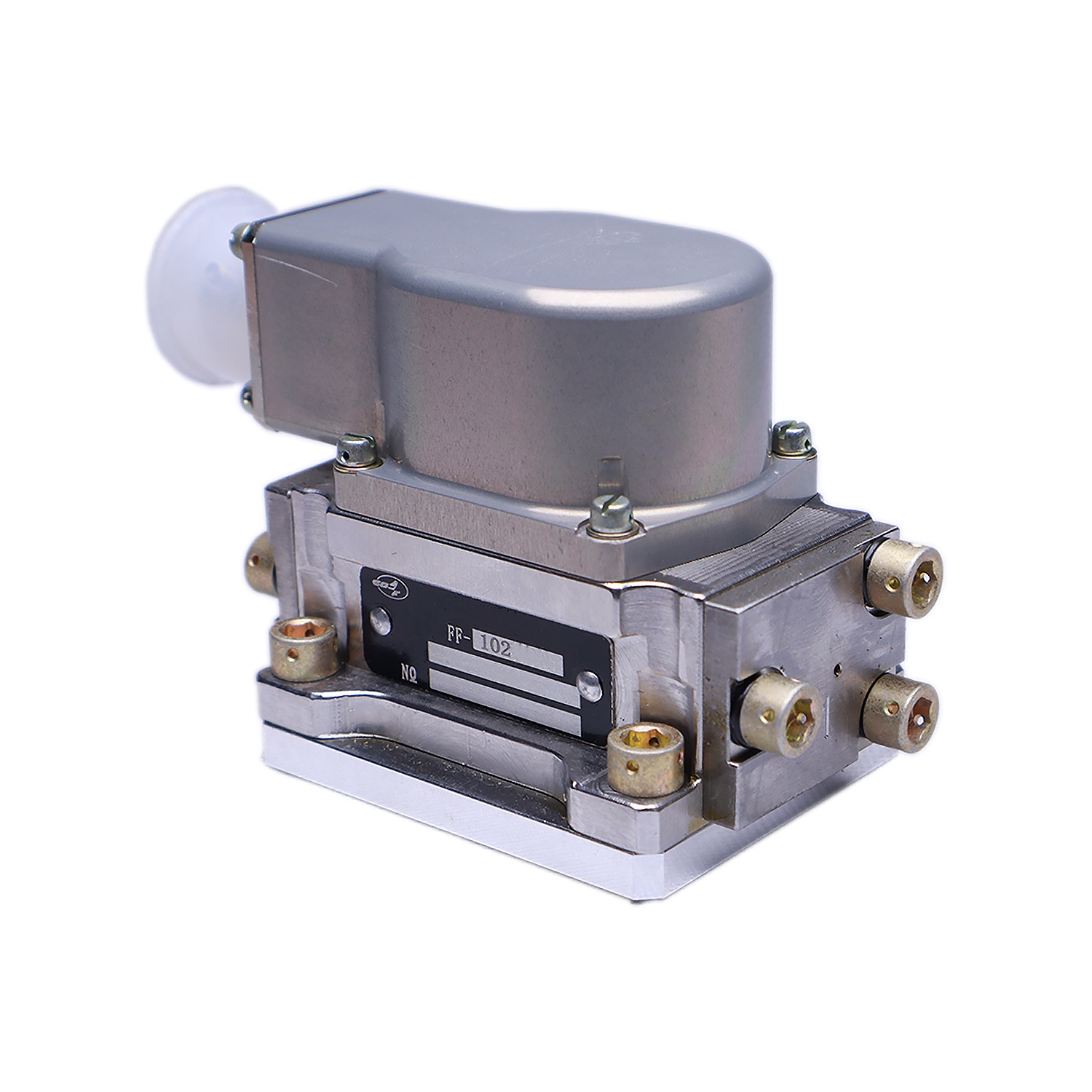

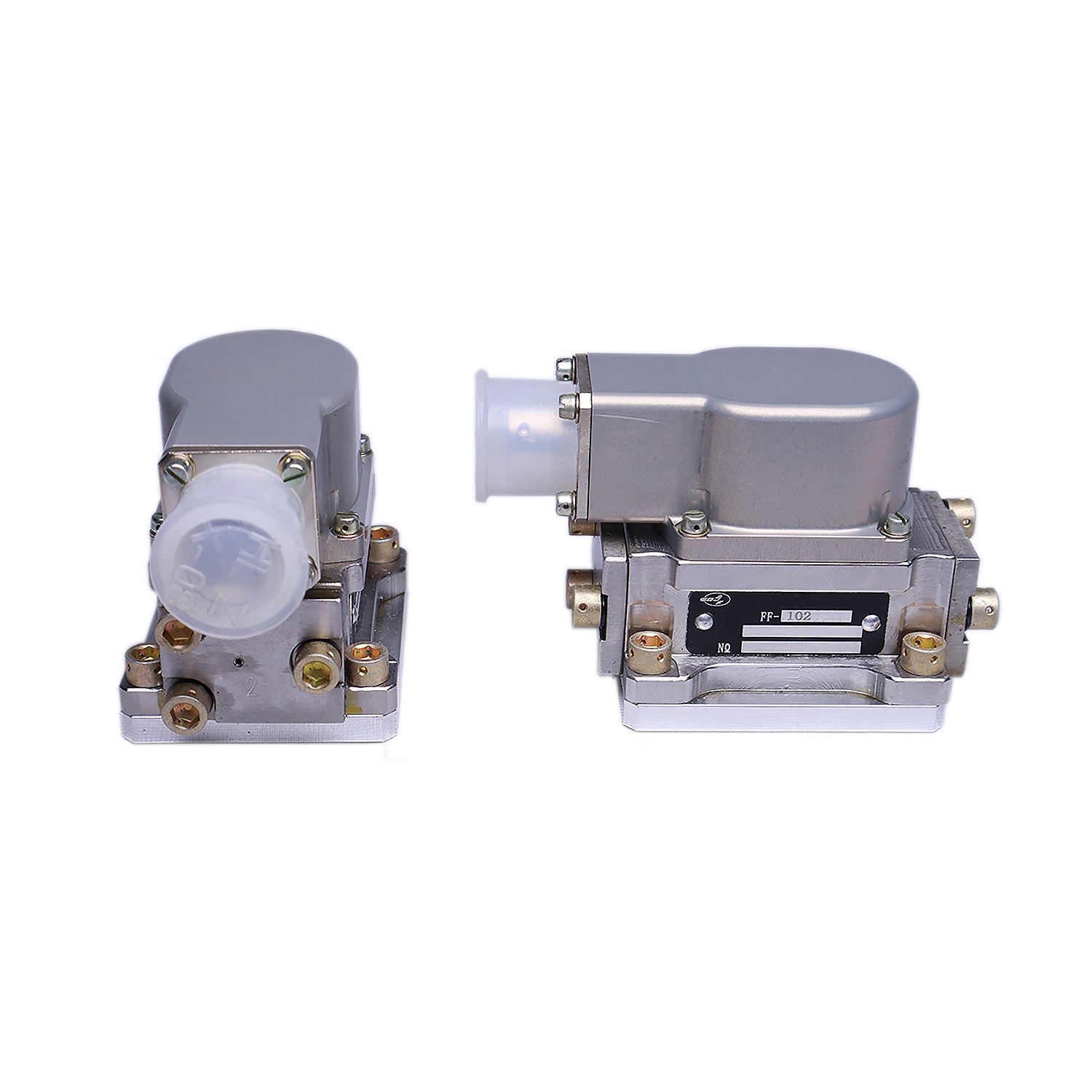

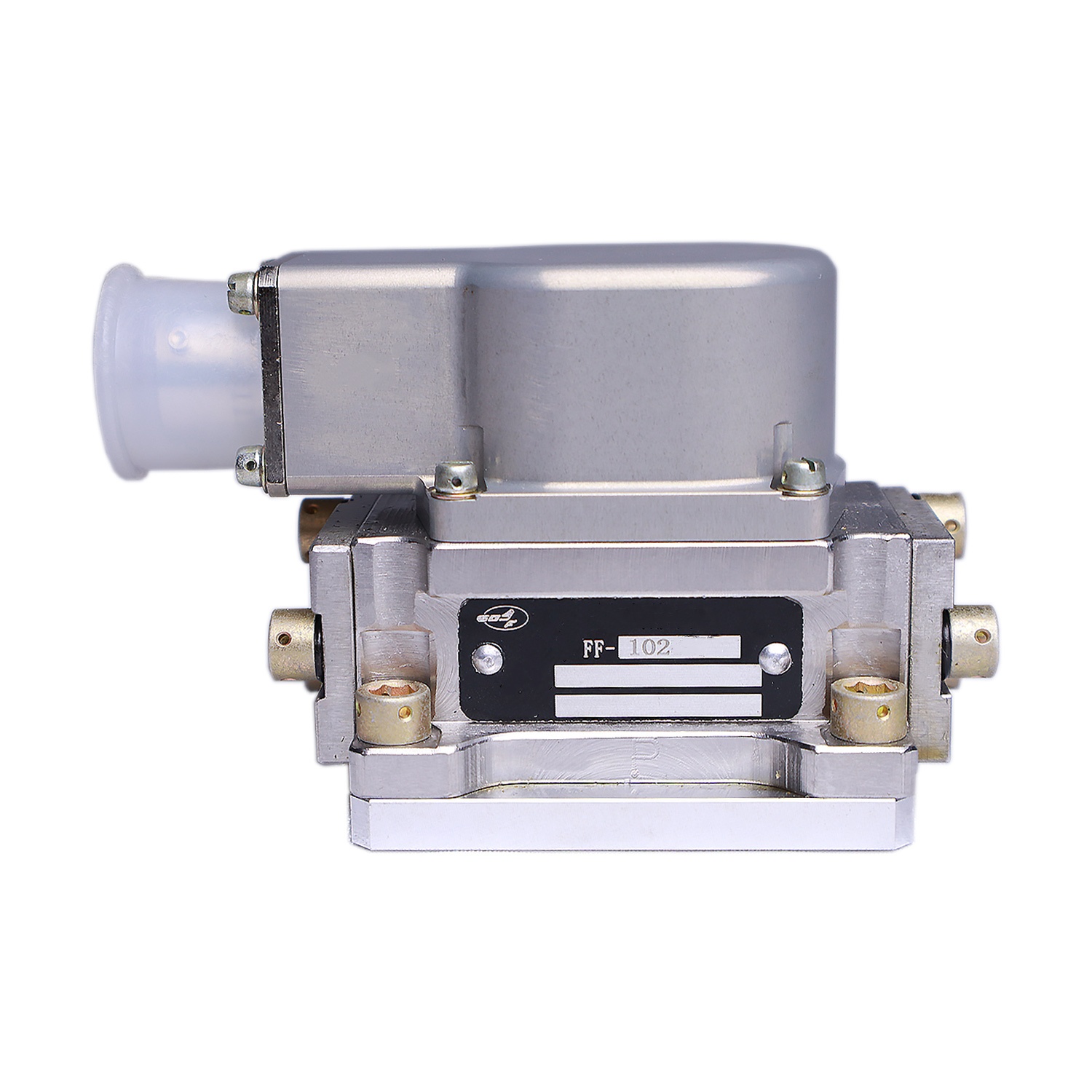

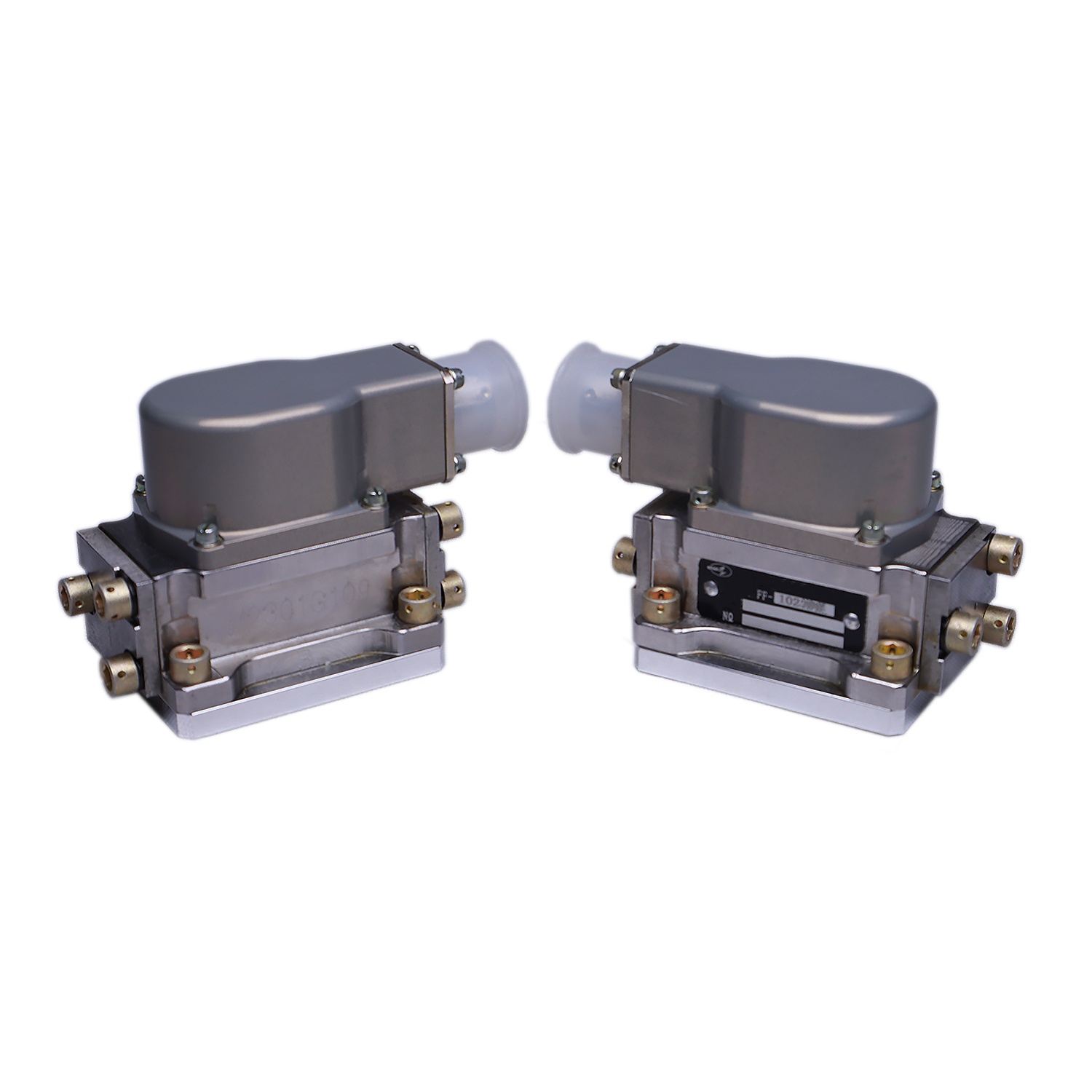

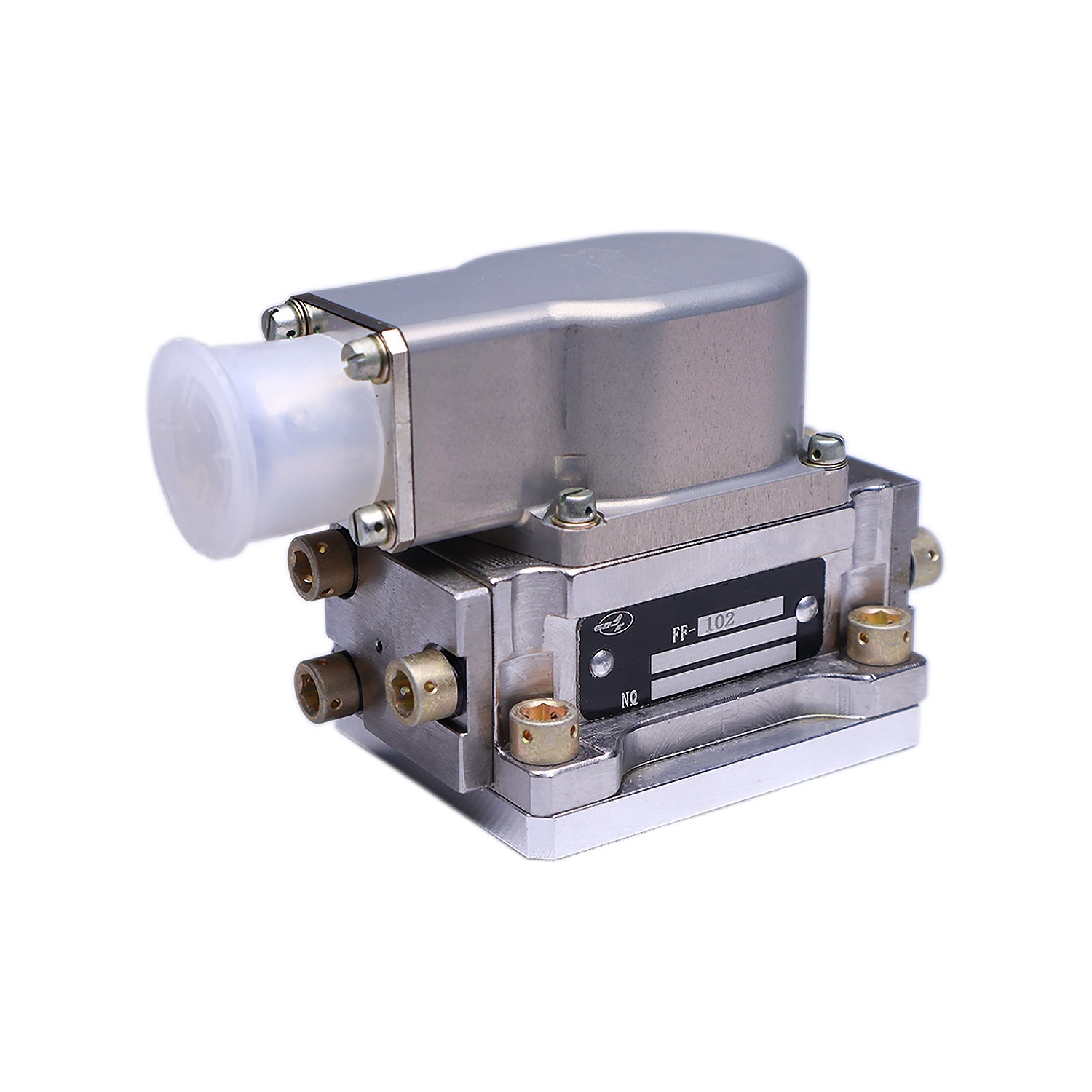

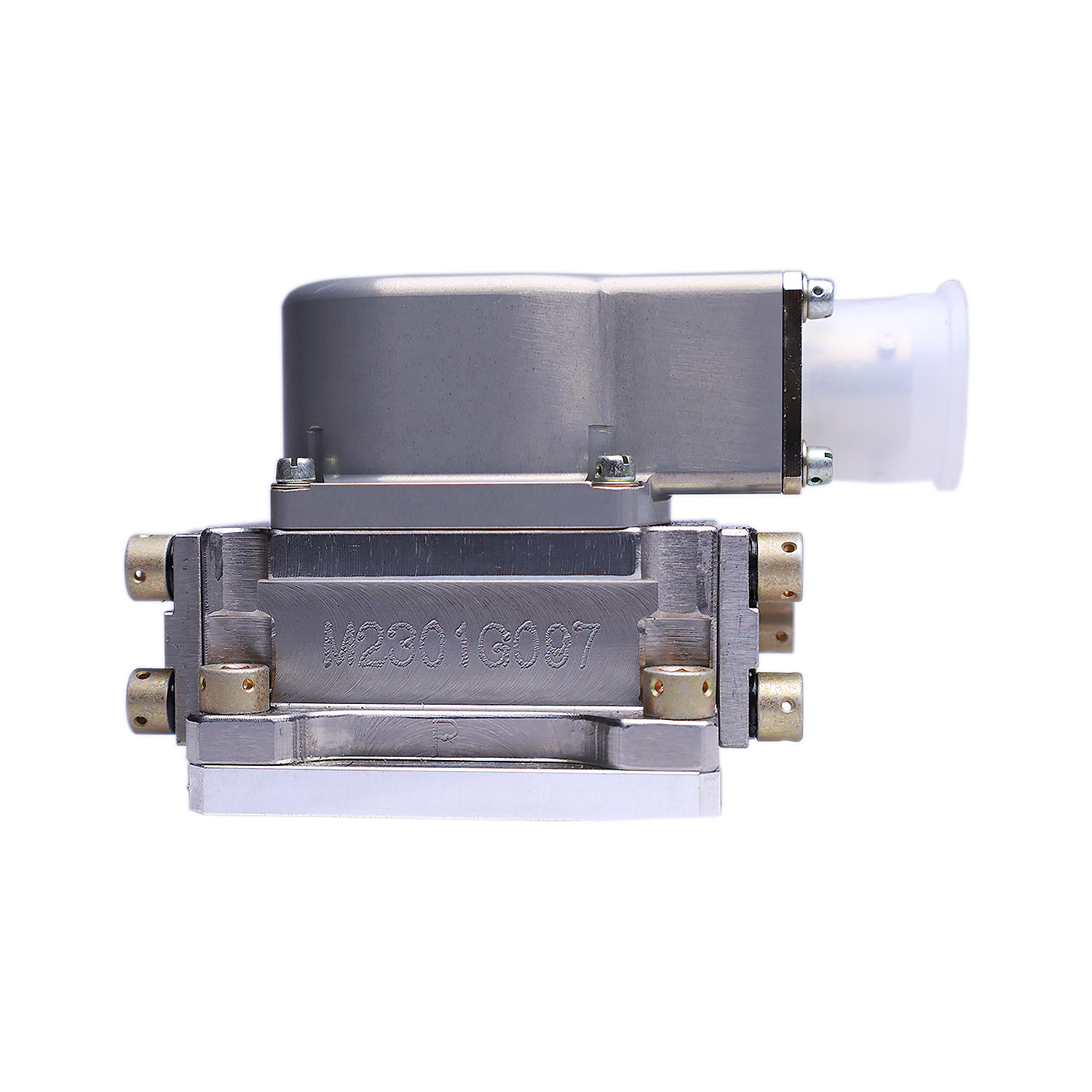

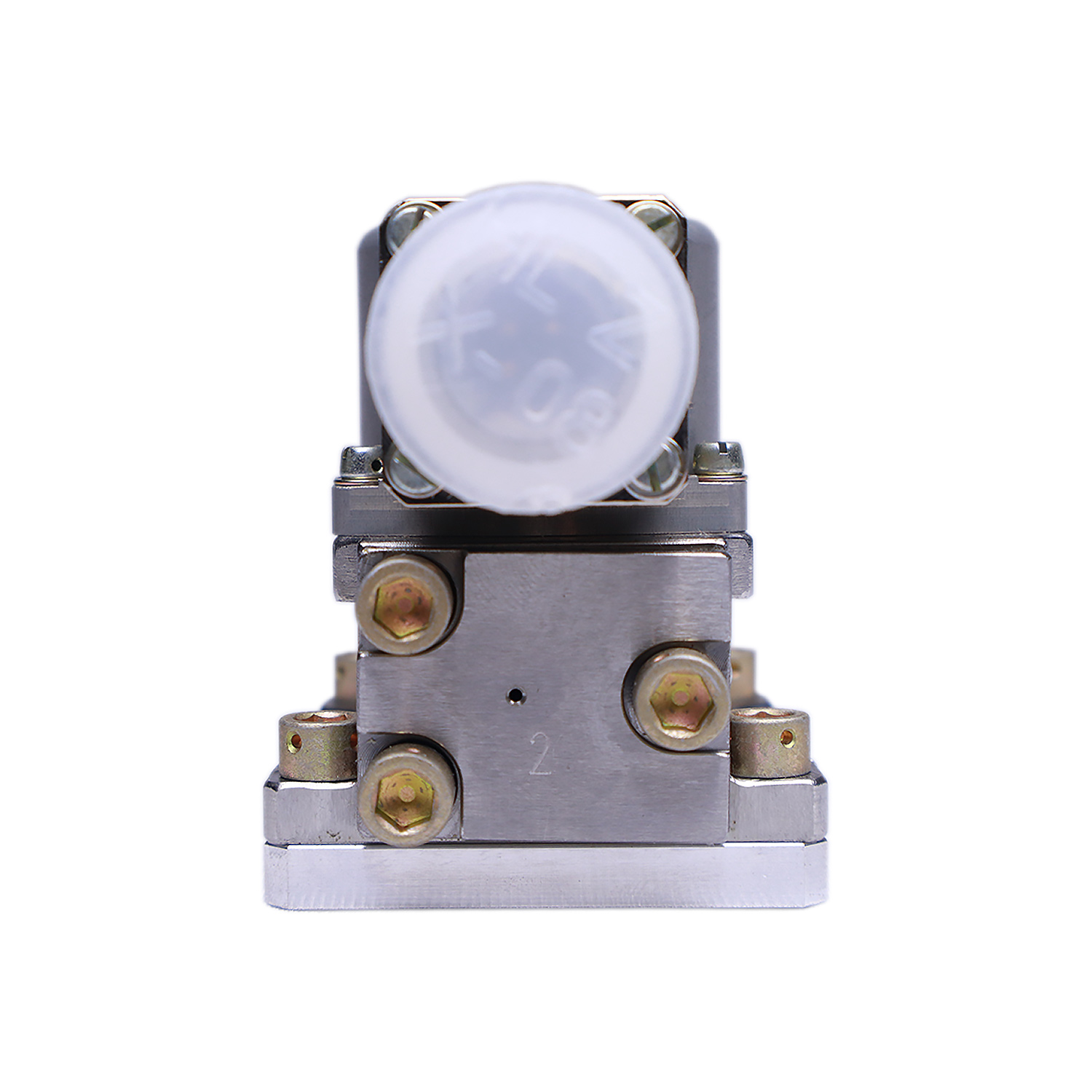

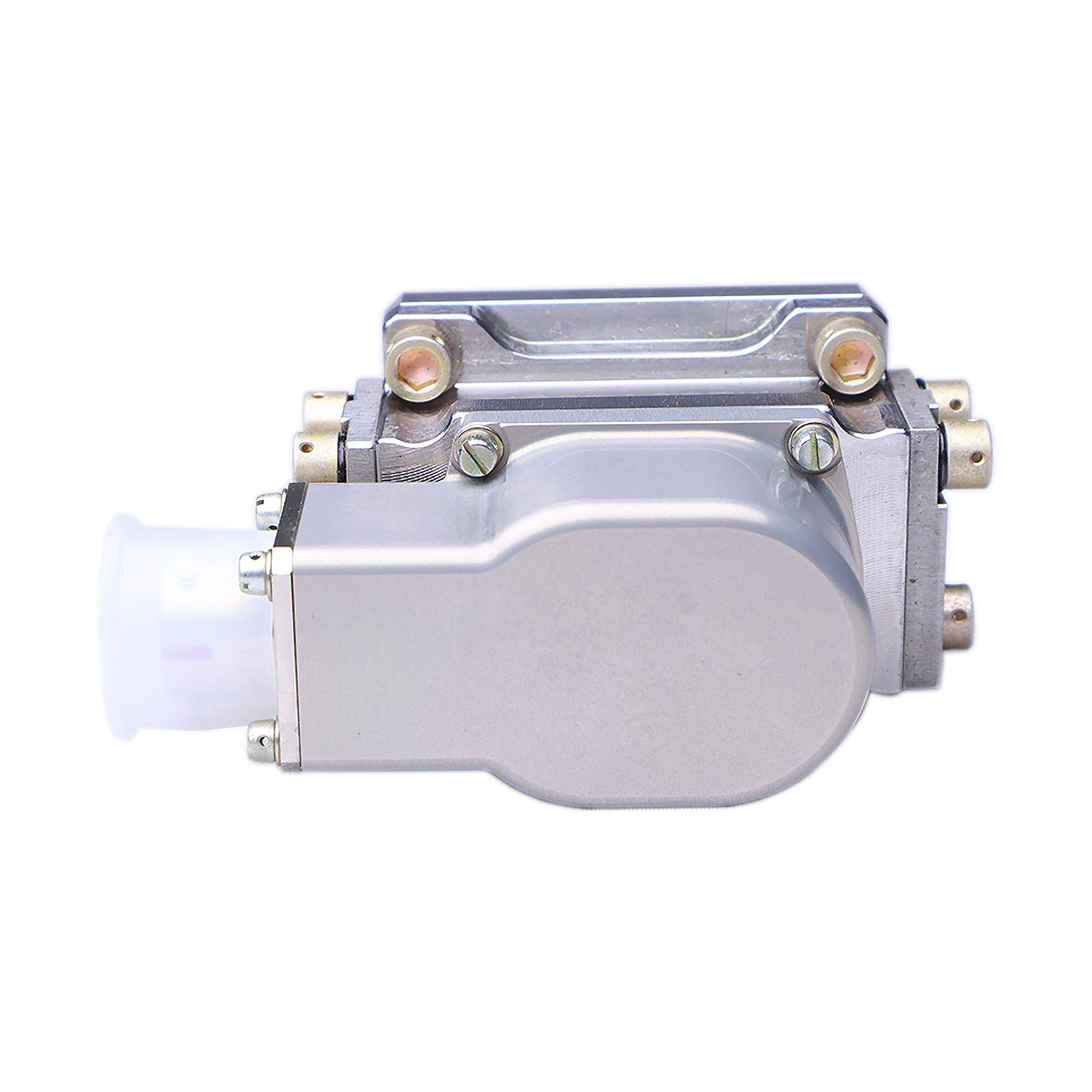

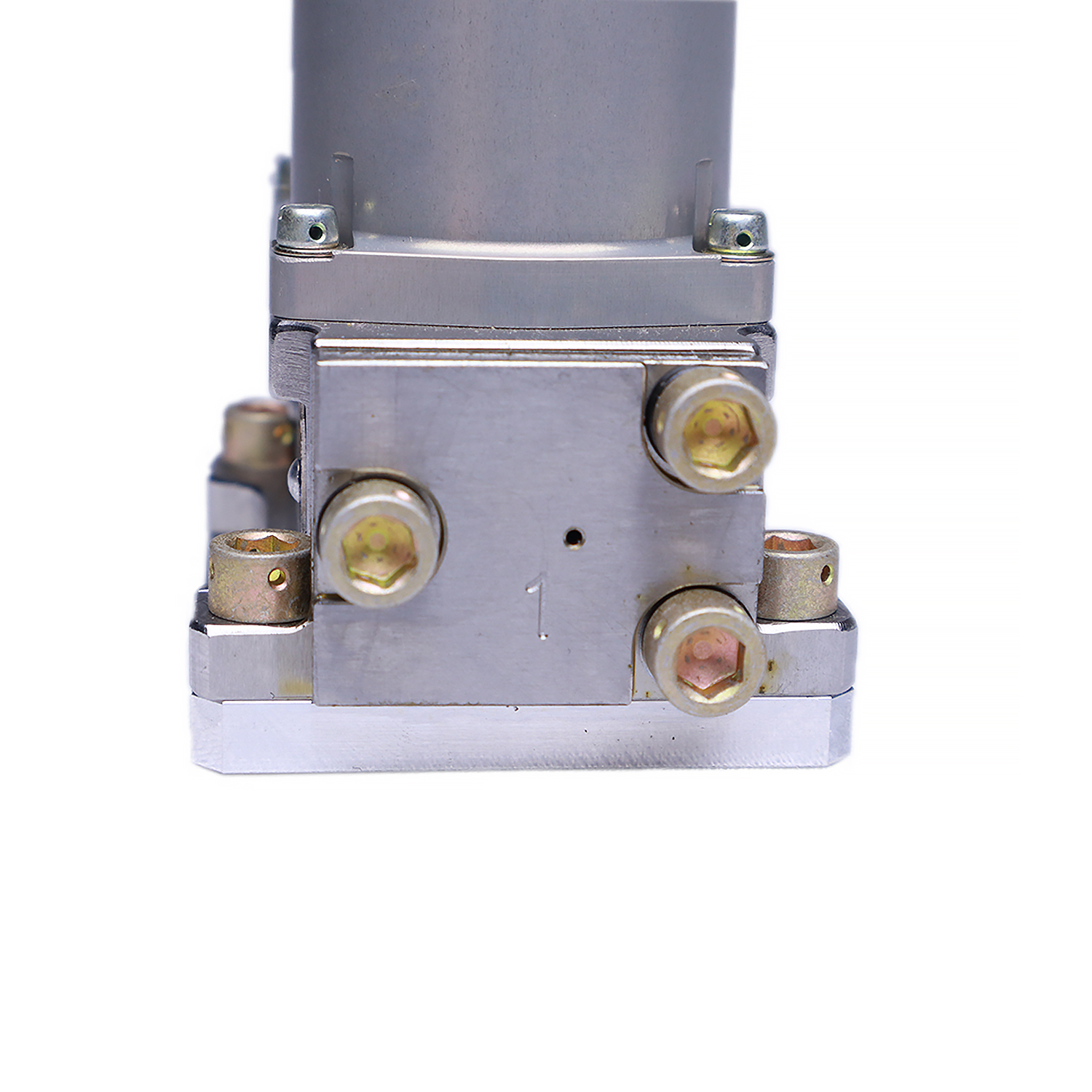

The FF-102 series electro-hydraulic servo valve is a two-stage dual nozzle baffle flow servo valve with force feedback. Under a pressure difference of 21MPa, its flow range is 2L/min to 30L/min. This series of servo valves adopts a fully stainless steel shell, compact internal structure, high structural strength, and relatively small volume and weight. The installation direction of product plugs and sockets can be selected according to needs. It has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption. Suitable for small and medium-sized rolling mills, blow molding machines, testing equipment, etc.
Product Features:
● High control accuracy, fast dynamic response, and easy operation
● Good linearity, strong driving force, and small zero drift
Technical Parameter：
Item | FF-102 Series | |||||||
Oil supply pressure range | MPa | 2～28 | ||||||
Rated Supply Pressure Ps | MPa | 21 | ||||||
bar | 210 | |||||||
psi | 3050 | |||||||
Rated Flow Qn(±10%) △PN=21MPa | L/min | 2 | 5 | 10 | 15 | 20 | 30 | |
gpm | 0.5 | 1.3 | 2.6 | 4 | 5.3 | 7.9 | ||
Rated Current | mA | 10 or 40 | ||||||
Coil Resistance | Q | 700±70 or 50±5 | ||||||
Insulation Resistance | M2 | ≥50 | ||||||
Hysteresis Loop | % | ≤4 | ||||||
Resolution Ratio | % | ≤1 | ||||||
Linearity | % | ≤7.5 | ||||||
Symmetry | % | ≤10 | ||||||
Pressure Gain | % | >30 | ||||||
Internal Leakage | L/min | ≤0.58 | ≤0.7 | ≤0.g | ≤1.1 | ≤1.3 | ≤1.7 | |
gpm | ≤0.15 | ≤0.18 | ≤0.24 | ≤0.29 | ≤0.34 | ≤0.45 | ||
Null Bias | % | ≤±3 | ||||||
Overlap | % | ≤±2.5 | ||||||
Null Shift With Supply Pressure (80%～110%)Ps | % | ≤±2 | ||||||
Null Shift With Return Pressure (0～20%)Ps | % | ≤±2 | ||||||
Null Shift With Temperature (-30～+150℃) | % | ≤±4 | ||||||
Frequency Response | Amplitude bandwidth(-3dB) | Hz | ≥100 | |||||
Phase Bandwidth (-90°) | Hz | ≥100 | ||||||
Net Weight | g | 400 | ||||||
