1 Introduction and Importance of Maintenance

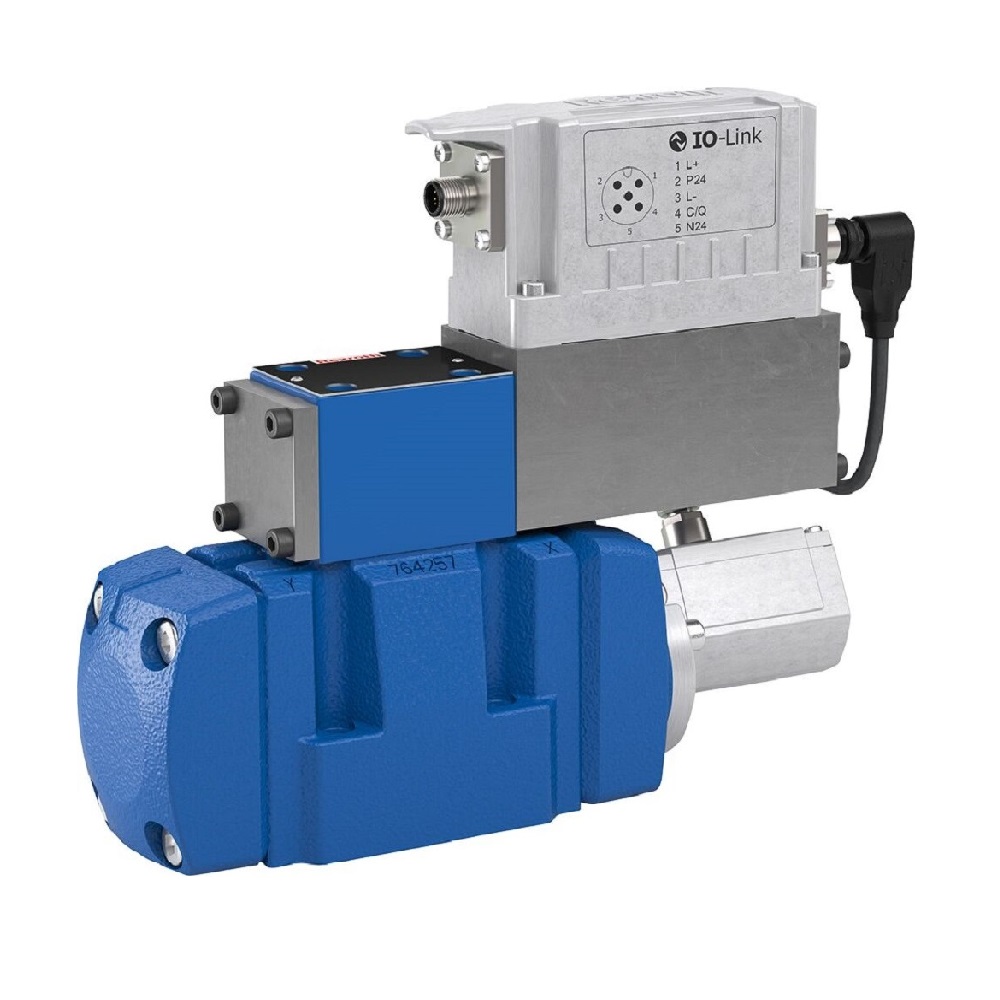

Direct Drive Servo Valves (DDVs) represent a critical category of electro-hydraulic control devices that directly convert electrical signals into precise hydraulic output without the complex pilot stages found in traditional two-stage servovalves. These valves are characterized by their simplified construction and superior reliability compared to conventional nozzle-flapper configurations, offering significant advantages in applications where precision, fast response, and contamination resistance are paramount

. The fundamental working principle involves a linear force motor or voice coil actuator directly manipulating the main spool's position, thereby controlling hydraulic flow and pressure to actuators with exceptional accuracy

.

Rebuilding and maintenance of DDVs are not merely recommended practices but essential requirements for ensuring continuous operational reliability in critical systems. These valves serve as the core control elements in high-performance hydraulic systems across aerospace, industrial automation, and mobile equipment applications, where failure can result in catastrophic system downtime, safety hazards, and substantial financial losses

. Regular rebuilding extends valve lifespan, maintains performance characteristics (including response time, hysteresis, and linearity), and ensures consistent operation in precision control applications where even minor degradation can significantly impact system performance

.

The rebuilding process transforms aged or compromised valves into units that meet or exceed original equipment specifications, restoring critical tolerances and functional characteristics that inevitably degrade during operation. This practice aligns with increasingly important sustainability goals by reducing waste and resource consumption compared to complete valve replacement

. For industries operating safety-critical systems, such as aerospace primary flight controls or industrial processes handling hazardous materials, regular valve rebuilding isn't merely a maintenance activity but a fundamental safety requirement that ensures continued protection of personnel, equipment, and the environment

.

2 Key Components and Failure Analysis

Understanding the anatomy of direct drive servo valves is essential for effective rebuilding practices. The primary components include the linear force motor or voice coil actuator, which generates the electromagnetic force required for spool movement; the main spool and sleeve assembly, which precisely meters hydraulic flow; position feedback sensors (typically LVDT or Hall effect sensors) that provide closed-loop control; and the valve body with precisely machined fluid passages

. The spool and sleeve assembly represents the most critical portion, with clearances typically maintained at less than 5μm to minimize internal leakage while ensuring smooth operation

.

Common failure modes in DDVs manifest through various performance degradation symptoms. Erosion wear stands as the predominant failure mechanism, particularly in applications with contaminated hydraulic fluid or high flow conditions. Research indicates that solid particle contamination (especially in the 20-40μm range) combined with high differential pressure significantly accelerates erosion wear in critical areas such as the spool metering edges and sleeve control orifices

. Mechanical wear occurs in the spool/sleeve interface due to imperfect alignment or contamination-induced friction, leading to increased hysteresis and reduced response sensitivity

. Electrical failures may develop in voice coil actuators or position sensors, while seal degradation and general contamination complete the list of prevalent issues that necessitate rebuilding

.

Table: Common Failure Modes in Direct Drive Servo Valves

Diagnostic assessment techniques form a crucial component of the rebuilding preparation process. Performance benchmarking against original specifications identifies deviations in flow characteristics, pressure gain, and frequency response

. Visual inspection using microscopic examination reveals erosion patterns, mechanical wear traces, and cavitation damage

. Dimensional metrology using precision instruments measures critical clearances and compares them against original equipment tolerances, while electrical testing validates coil integrity and sensor functionality

. Advanced rebuilding facilities employ computational fluid dynamics (CFD) analysis to simulate flow patterns and identify areas prone to erosion and cavitation, allowing for targeted improvements during the rebuilding process

.

3 Step-by-Step Rebuilding Process

The rebuilding process begins with comprehensive inspection and assessment, where valves undergo rigorous evaluation to determine their suitability for rebuilding. Technicians perform detailed visual examination, document external condition, and conduct preliminary functional tests to establish baseline performance metrics

. This phase determines whether the valve represents a viable candidate for rebuilding or requires replacement due to irreversible damage such as catastrophic erosion, structural cracks, or irreparable electrical failures. Valves that pass initial assessment proceed to disassembly, where components are carefully separated, labeled, and organized for individual evaluation

.

Disassembly and cleaning constitute perhaps the most critical phase in the rebuilding workflow. Meticulous disassembly ensures components are not damaged during separation, particularly critical items such as the voice coil assembly and precision feedback sensors

. Following disassembly, components undergo advanced cleaning processes using specialized chemicals and techniques tailored to remove specific contaminants without damaging component surfaces

. Ultrasonic cleaning tanks, specialized solvent baths, and precision flushing equipment remove accumulated varnish, microscopic particles, and other degradation products from intricate fluid passages and critical interfaces. Each component is cleaned separately to ensure complete contamination removal, as even microscopic residues can compromise rebuilt valve performance and longevity

.

The repair and replacement phase addresses components identified during the inspection process. Worn or damaged elements are either restored to original specifications or replaced with new parts. Sealing elements (O-rings, gaskets) are universally replaced as preventive maintenance

. Spool and sleeve assemblies exhibiting wear beyond specified tolerances are either precision-reworked using specialized lapping equipment or replaced entirely

. Electrical components such as voice coils and sensors are tested against original equipment specifications and replaced if parameters fall outside acceptable ranges. Valve bodies with eroded passages may undergo specialized repair processes including welding, re-machining, or the application of specialized coatings to restore original geometry and performance characteristics

.

Table: Rebuilding Process Steps and Key Activities

Reassembly and testing represent the final phase where renewed components are meticulously reunited into a fully functional valve. Reassembly follows precise sequences using calibrated torque tools and specialized fixtures to ensure proper alignment and adherence to specified preload values

. Following assembly, rebuilt valves undergo comprehensive testing that validates performance across multiple parameters including internal leakage, frequency response, pressure gain, hysteresis, and step response characteristics

. Testing occurs under simulated operational conditions using hydraulic test stands capable of precisely controlling flow, pressure, and temperature parameters. Valves that successfully pass all testing protocols are certified as rebuilt and prepared for return to service, often with performance guarantees matching or exceeding new units

.

4 Challenges and Solutions in Rebuilding

The rebuilding process for direct drive servo valves presents several significant challenges that require specialized approaches. The shortage of qualified facilities with appropriate certifications represents a major obstacle for many operators

. The sophisticated nature of DDVs demands specialized knowledge, equipment, and cleanroom environments that many general repair facilities lack. This expertise gap frequently results in extended downtime while valves are shipped to specialized facilities and placed in rebuilding queues. The precision measurement of critical components requires sophisticated metrology equipment capable of verifying dimensions and tolerances at the micron level, which represents a substantial investment for rebuilding facilities

.

Technical complexities in the rebuilding process present additional hurdles. The restoration of critical spool/sleeve clearances (typically less than 5μm) demands specialized lapping and honing equipment operated by skilled technicians

. Electrical component repair requires sophisticated test and calibration equipment to validate voice coil performance and sensor accuracy

. Component sourcing challenges emerge when original equipment manufacturers restrict access to spare parts, necessitating reverse engineering or alternative sourcing strategies that must meet or exceed original specifications without compromising performance or reliability

.

Implementing strategic solutions addresses these rebuilding challenges effectively. Exchange programs dramatically reduce equipment downtime by providing fully rebuilt valves while customer units undergo rebuilding

. Advanced certification processes ensure rebuilt valves meet original performance specifications, providing quality assurance comparable to new units

. Specialized training programs develop technician expertise in DDV rebuilding techniques, while strategic partnerships with OEMs facilitate access to genuine components and technical documentation

. Additionally, process documentation and quality management systems ensure rebuilding consistency and traceability, critical requirements for valves deployed in safety-critical applications

.

5 Advanced Technologies and Future Trends

The landscape of direct drive servo valve rebuilding is being transformed by several advanced technologies that enhance capabilities and outcomes. Additive manufacturing (3D printing) enables the production of complex internal passageways that optimize flow characteristics and reduce erosion-prone turbulence

. Companies like Domin Fluid Power have leveraged metal 3D printing to redesign valve internals, creating optimized manifolds that reduce pressure losses and improve efficiency compared to traditionally manufactured valves

. The flexibility of additive manufacturing also facilitates the production of obsolete or proprietary components that may be unavailable through traditional supply channels, significantly enhancing rebuilding possibilities for older valve designs

.

Advanced materials and coatings are increasingly employed during rebuilding to enhance performance and longevity. Wear-resistant coatings applied to spool and sleeve interfaces reduce friction and erosion susceptibility, extending service intervals beyond original specifications

. Specialized seal materials compatible with a broader range of hydraulic fluids and operating temperatures enhance reliability in demanding applications

. Piezoelectric actuators are being incorporated in some rebuilt valves to ｒｅｐｌａｃｅ traditional electromagnetic actuators, providing faster response times and reduced hysteresis compared to original designs

. These advanced materials and components allow rebuilding facilities to not merely restore original performance but actually enhance valve capabilities beyond initial specifications.

Table: Advanced Technologies in DDV Rebuilding

The future of DDV rebuilding is evolving toward predictive and condition-based approaches made possible by embedded sensors and IoT connectivity. Integrated sensors monitor valve performance in real-time, enabling rebuilding before catastrophic failure occurs

. Advanced control algorithms, including fuzzy PID controllers with disturbance observers, compensate for hysteresis and other nonlinearities that develop during component wear

. Digital twin technology creates virtual valve replicas that simulate performance and predict maintenance requirements based on operational data

. These technologies are transforming rebuilding from a scheduled maintenance activity into a precision intervention based on actual component condition and performance metrics, optimizing maintenance resources while maximizing operational availability.

6 Conclusion

Direct drive servo valve rebuilding represents a sophisticated process that restores precision hydraulic components to optimal performance, extending service life while reducing operational costs and environmental impact. The comprehensive rebuilding process—encompassing inspection, disassembly, cleaning, component repair/replacement, and rigorous testing—returns valves to service with performance characteristics matching or exceeding original specifications

. This practice delivers significant economic advantages by avoiding the substantial costs of valve replacement while minimizing system downtime through well-executed rebuilding programs and exchange systems

The technical challenges associated with DDV rebuilding—including precision measurement, component restoration, and electrical system repair—require specialized expertise and equipment available only at certified facilities

. These challenges are being addressed through technological advancements including additive manufacturing, advanced materials, and smart diagnostics that enhance rebuilding capabilities and outcomes

. The future of DDV rebuilding will increasingly embrace condition-based approaches powered by IoT connectivity and digital twin technology, transforming rebuilding from scheduled maintenance into precision interventions based on actual component condition

.
